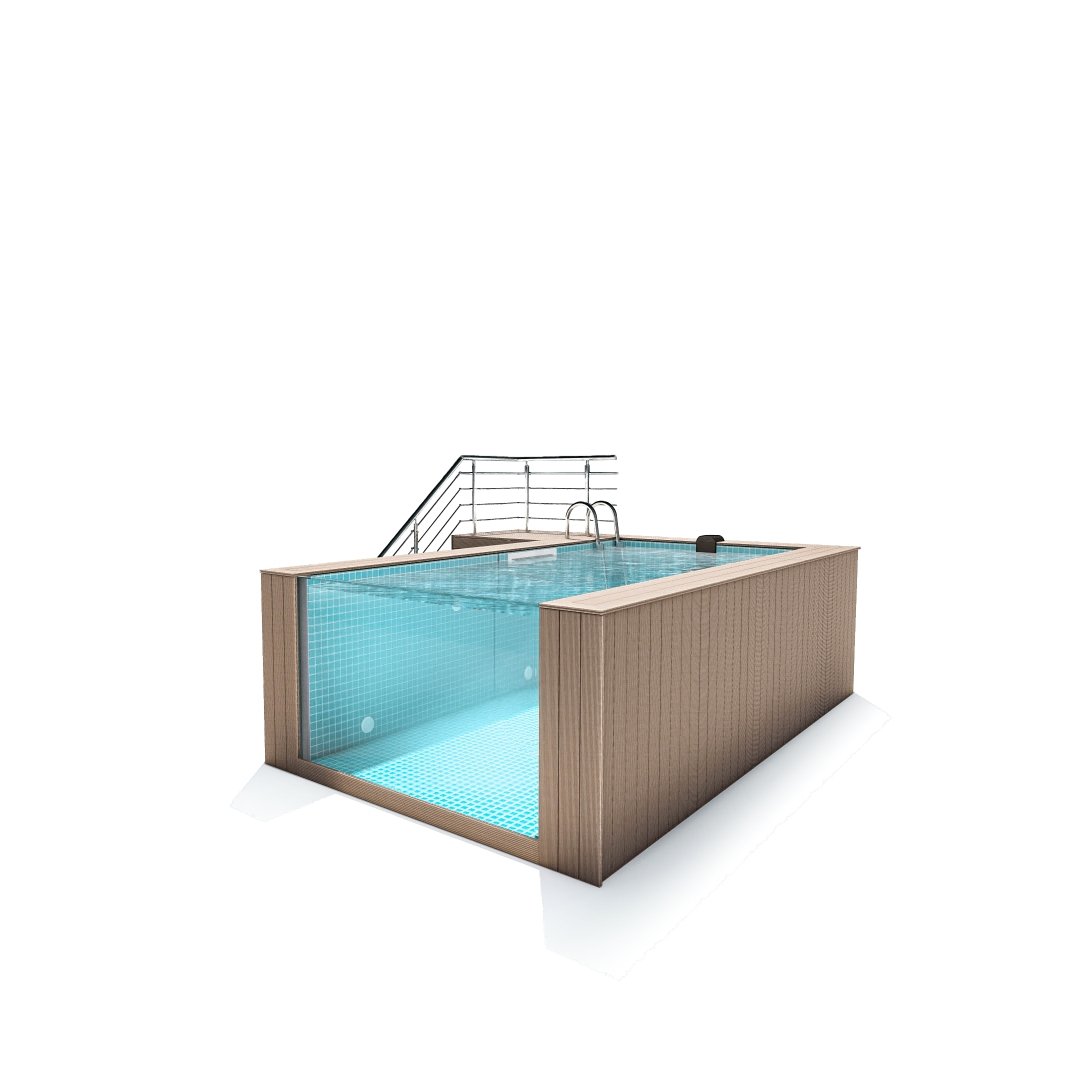

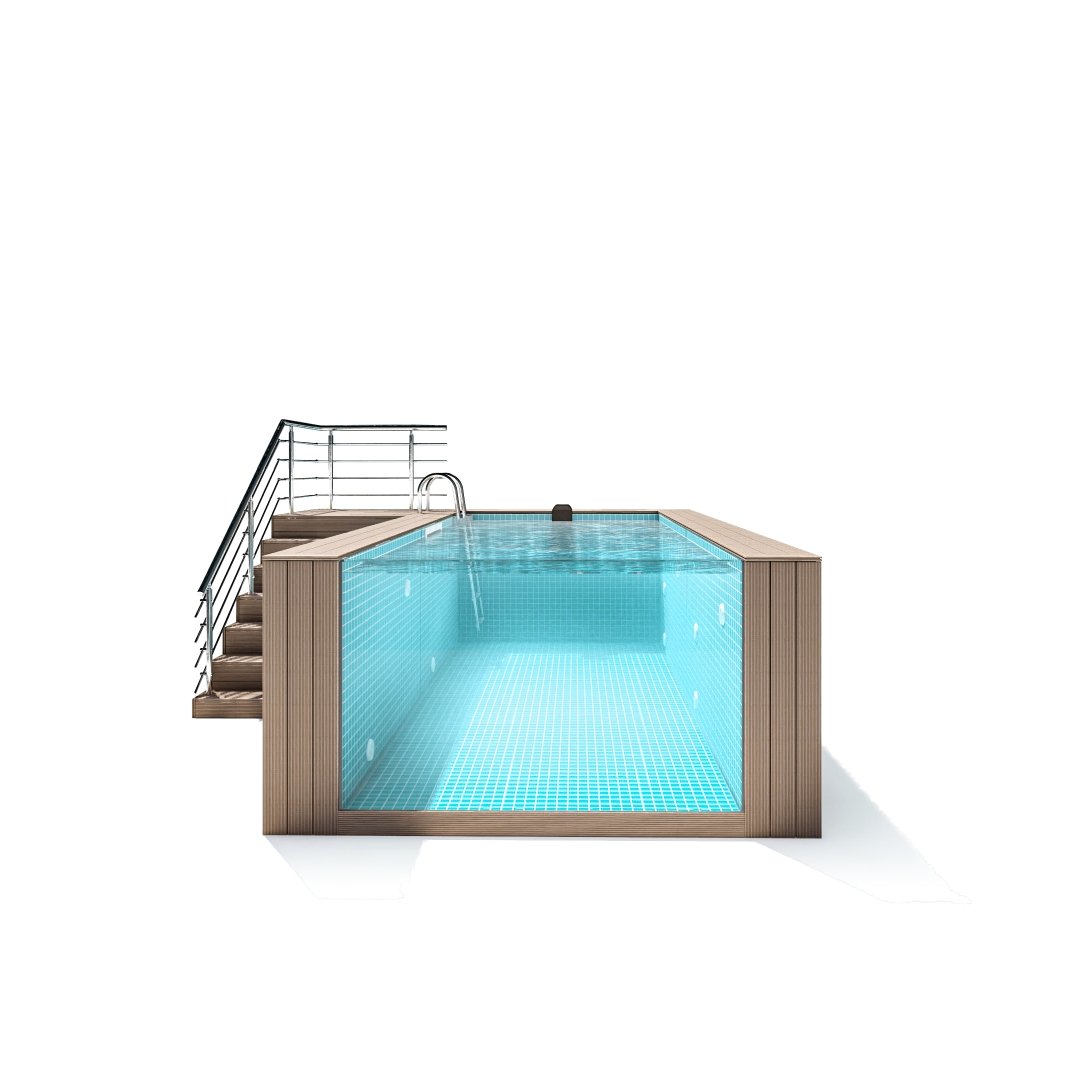

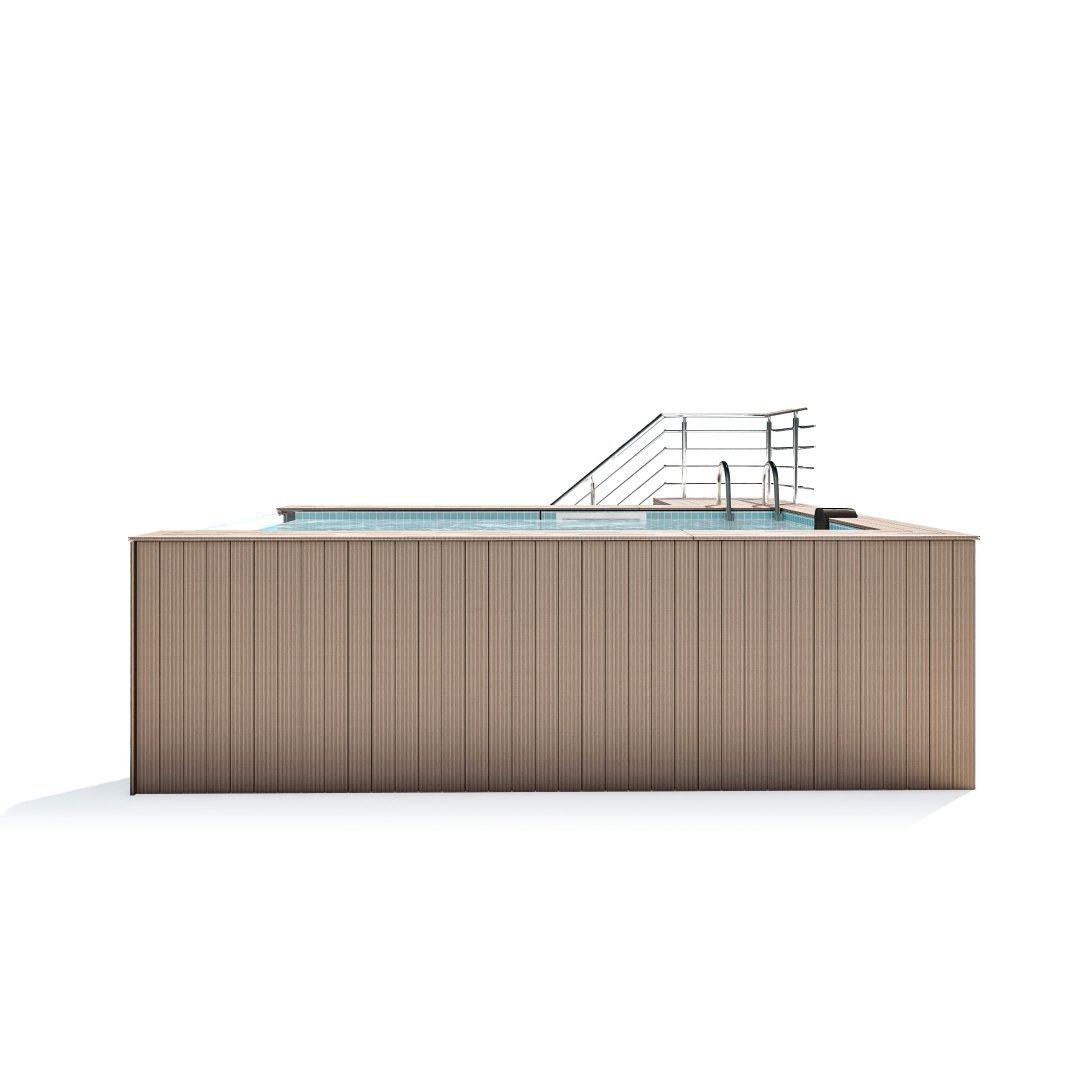

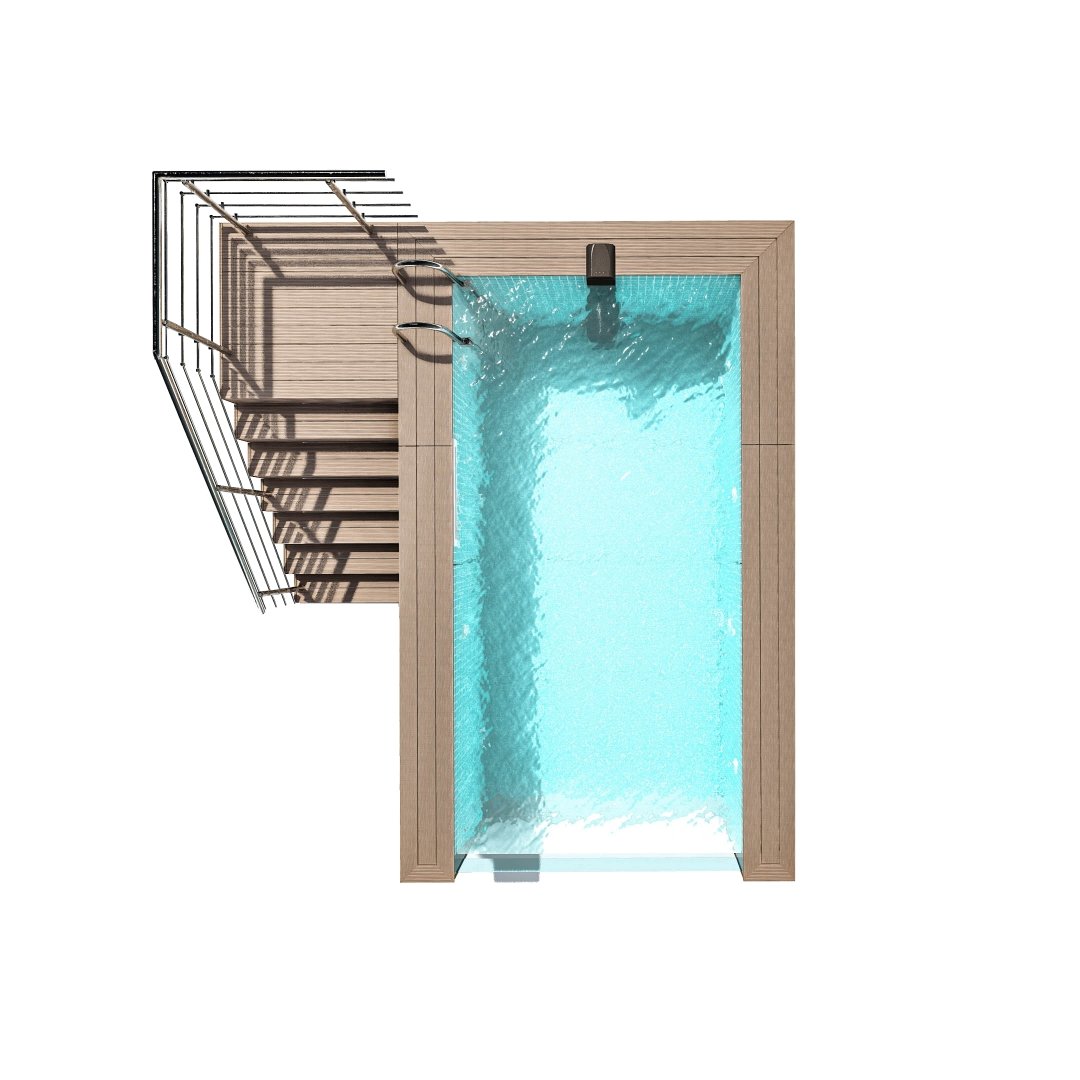

AP-2040

36V DC low-voltage power system

Water purification system

Intelligent control system

Modular pool structure

Multi-level adjustable pool counter-current device

Energy-saving constant temperature system

Redcoral - specialized acrylic transparent panel for swimming pools

Multiple customization options

*The data is based on experimental tests conducted by Aupool, and the actual results may vary slightly depending on the measurement methods used within the industry.

POOL STEEL STRUCTURE

Material ：201 Stainless steel

Size ：4500*2650*1350MM

Weight ：625KG

STAIR STRUCTURE

Material ：201 Stainless steel

Size ：2650*1300*1350MM

Weight ：165KG

GLASS WALL

Material ：acrylic

Size ：2200*1330*100mm

Weight ：352KG

transmittance ：>93%

service life ： 30+ year service life

LINER MATERIAL PANELS

Material：Composite sandwich panel

Size： bottom -1990*990*70mm 4pcs

　　　 side 1990*1290*20mm 5pcs

Weight：237KG

colour ：blue（ Custom colors available ）

HANDRAIL

Material： 304 Stainless steel

height ：900mm

Weight：20KG

Surface finishing：polished

EXTERIOR DECORATION MATERIAL

Material：Wood Plastic Composite

Thickness：22mm

Surface finishing：Brushed, 3D Embossing

colour：natural wood, coffee, and chocolate Warranty:5years

POOL LADDER

Materials:304 Stainless steel

Step:3,4,5 available

Dimensions:900*500*180mm  / 800*470*50mm

Feature:Anti-slip

Weight:7kg

Water pump1

Model：AP10000

Voltage：100-240VAC

Power：105W

Q max：10m3/h

H max：5m

pump Size：193*99*191mm

Inlet/Outlet：DN40(Φ50mm)

Certifications:CE/RoHs

Weight:3kg

Water pump2

Model：AP12000

Voltage：100-240VAC

Power：105W

Q max：12m3/h

H max：6m

pump Size：193*99*191mm

Inlet/Outlet：DN40(Φ50mm)

Certifications:CE/RoHs

Weight:3kg

FILTER TANK

Model：Q450

Filter capacity at 30 m³/h/m²:4.8 m³/h

Tank Dia：Φ450mm

Connection Size：DN40(Φ50mm)

Filter Area：0.16㎡

Height：810mm

Weight：12.2kg

Silica Sand:45kg

POOL HAIR COLLECTOR

Materials:304 Stainless steel

Dimensions:220*340*350mm

Connection Size：DN40(Φ50mm)

Weight:6kg

SALT CHLORINE GENERATOR

Model：AP15

water treatment capacity up to：30m3

Input Voltage :110-265 Vac

Input current:0.68A(at 240Vac)

Output Voltage :27.5 Vdc

Output current:2.8-3.2A

Power Consumption：100.4W

Frequency:50-60 Hz

Chlorine :3500ppm

salt：15g/h

Cell Size :Φ126*325mm

Control modules Size :230*215*100mm

Inlet/Outlet：2" (Φ60.3mm)

Certifications:CE/RoHs

Weight:4.56kg

UV-C STERILIZERS

Model：UVS-85N

Input Voltage :110 or 220 Vac

Input current:0.45A(at 220Vac)

Frequency:50-60 Hz

Total lamp power :87W

Working Pressure:0.7MPa

Dimensions :1080×100×220mm

Connection Size：DN40(Φ50mm)

Certifications:CE/RoHs

Weight:14kg

ORP AND PH CONTROL SYSTEM

Model：AUT-042

Input Voltage :110-240 Vac

Input current:0.75A(at 220Vac)

Frequency:50-60 Hz

Total lamp power :15W

pH measurement-- range: 0~14；Resolution：± 0.01

ORP measurement -- range： ± 1500mV； Resolution：1mV； Accuracy：± 1mV

Dimensions :300*290*143mm

Installation : wall-mounting

Working environment :Temperature 0 ~ 40°C；Relative Humidity 0 ~ 95%

Certifications:CE/RoHs

Protection degree:IP65

Weight:2.45kg

Signal Input:external trigger (flow meter) input (15 ~ 30Vac / Vdc)

Output:0 / 4 ~ 20mA，4 dosing pump relay output (10A, 220V)

SWIM CURRENT MACHINE

Packages Size:650mm*550mm*350mm

Supply voltage:100-240 VAC

Frequency range:50/60 Hz

AC current(230VAC):9 A

Power factor (type):>0.95

Rated power:2100 W

Rated voltage:28 VDC

MAX current:70 A

Motor power:1960VA

Discharge rate:80m³/h to 300m³/h

Speed (Swimming area）:0.9 m/s to 2.0 m/s

Water temperature：5℃ to 40℃

Immersion depth:250mm

Warranty:2 years factory warranty

IP rating :IPX8

Weight:14Kg

UNDERWATER LIGHT

Model：HJ-FC-PC94-2

Driver input/output :110-240 Vac /  12Vdc

Input current:0.45A(at 220Vac)

Frequency:50-60 Hz

Power :9W

Colour  temperatures :Warm white/Clear white

Dimensions :Φ94mm*80mm

Certifications:CE/RoHs

Protection degree:IP68

Weight:1.15kg

DISTRIBUTION BOX

Materials:304 Stainless steel

Dimensions:650*500*250mm

Protection degree:IP65

Weight:9kg
